2027 PITTS LB55-22DC TPILB5522DCJAX Web

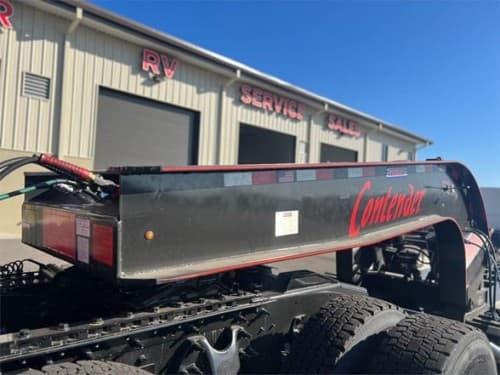

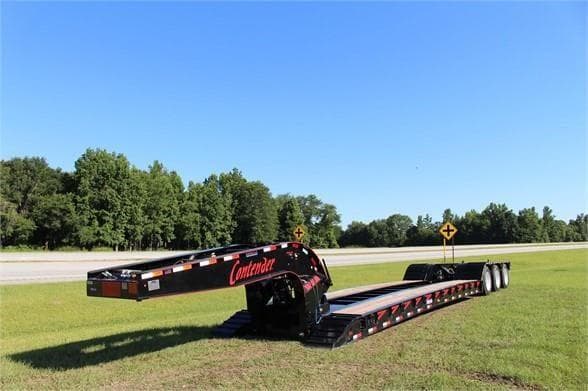

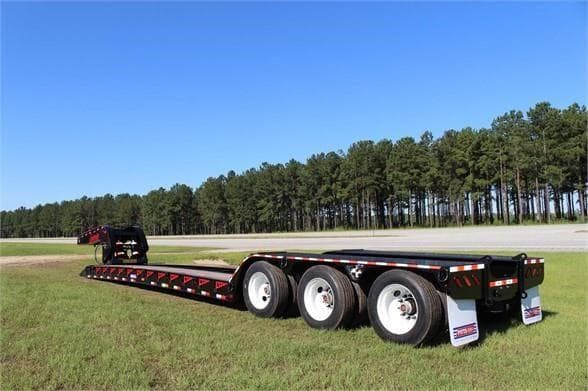

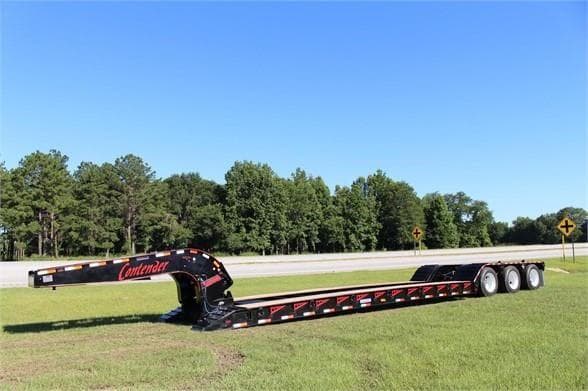

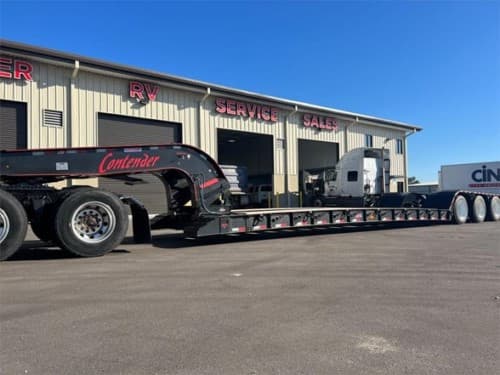

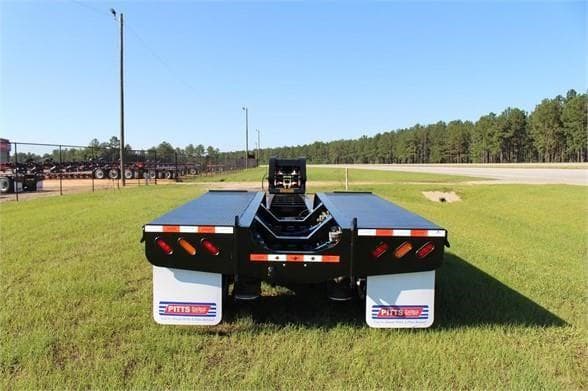

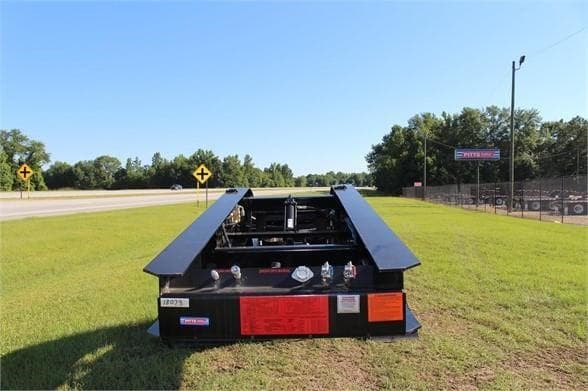

PITTS LB55-22DC HYDRAULIC DETACHABLE GOOSENECK Pony Motor option available*, 4th Axle Option Available ***Available in 51 Ton & 35 Ton Capacity*** Delivery charges may apply *FET Additional* SPECS: - Capacity: 55 tons in 12a length (GAWR and tire ratings determine legal payloads) - Estimates Tare Weight (STANDARD PACKAGE): 20,100 lbs A+- 3% - Overall: 8a 6a width x 52a8a length - Clear deck length: 25a, (flat deck design) - Deck height under full load: 22a (ground clearance 6a) - 50a nominal loaded 5th wheel height (4 ride height positions) - Rear bogie height: 41a GOOSENECK DESIGN - Hydraulic, detachable with 9a cylinders. non-ground bearing, set up for wet line - Adjustable ride height features 4-position mechanical lock for separate deck and fifth wheel height control - Air locking pin - 102a swing radius DECK DESIGN - Main longitudinal members fabricated with 100 KSI yield steel flanges with 50 KSI yield webs - Level deck design - 10a I-beam crossmember on 24a centers with 4a stub cross members on 12a centers outer bay - 1 1/2a nominal apitong - Front of deck approach ramp with traction cleats - Lockable toolbox in front of deck - Removable swing-type outriggers (extends trailer width 2a) BOGIE DESIGN - Fixed deck-to-bogie connection with front bogie ramp - V-style boom trough - Recessed load bearing bolsters between axles and behind last axle - Heavy-duty V-style rear bumper - Available fourth flip axle setup - Ultra low bucket well AXLES - (3) Heavy-duty axles with 54 1/2a spread - 25,000 lbs nominal capacity per axle (GAWR determined by suspension type, brakes, tires and other components) - Tapered spindle axles BRAKES - 16 1/2a x 7a - Heavy-duty brake drums, outboard mount - Automatic slack adjusters - Type 30/30 parking brakes on (2) axles HUBS - Hub-piloted 10-stud mount - Outboard cast drums WHEELS/TIRES - (12) St...
