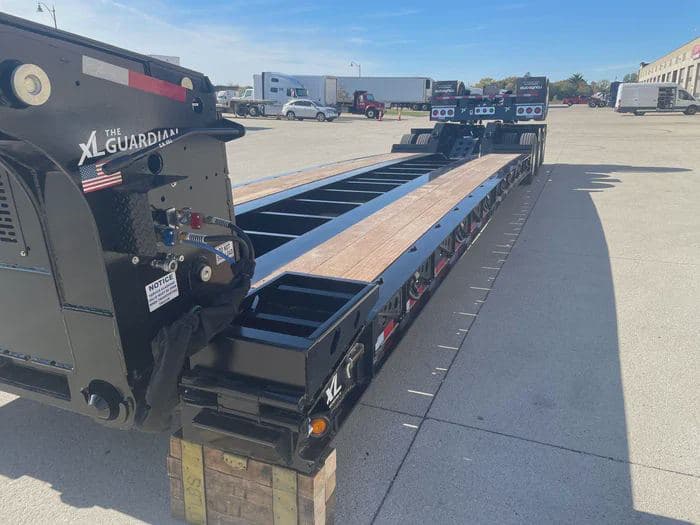

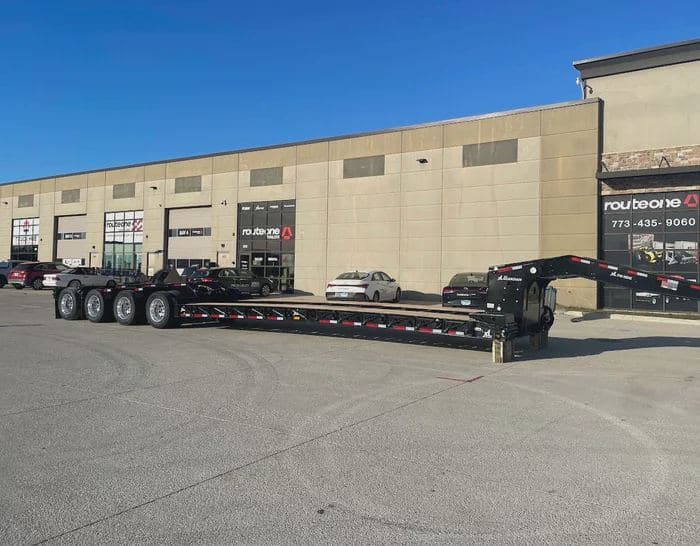

2027 XL 110 HDGS Guardian

53’ L x 102” W
Low-Profile Scraper Neck
Capacity - 110,000 lbs, 110,000 in 12’
Trailer weight - 22,470 lbs.

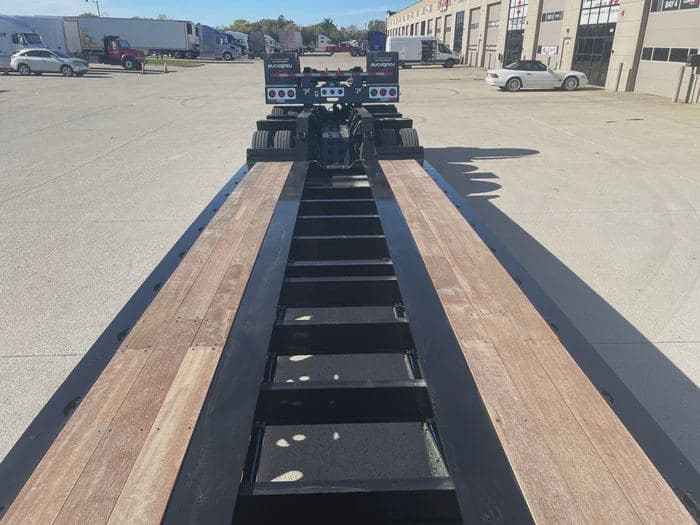

Main Deck Length -  26’
Loaded Deck Height - 18”  w/ 6” Ground Clearance
1 - Toolbox in Front of Main Deck
4 - Flat D-Rings On Front & On Back
7 - Bent D-Rings Per Side
Swing out Outriggers - 24” O/C (Center Swings Together)
Pullout HD Outriggers
Chain Drops On 24” Centers Per Side Outside Main Beam
Bucket Well at Rear of Main Deck w/ Plate On Bottom
31” Front Flip Ramps

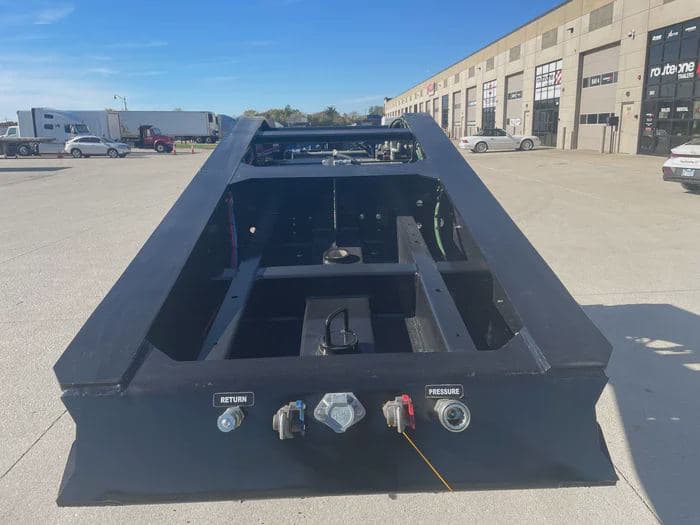

Gooseneck Length - 13’
13 HP Honda Pony Motor
King Pin Setting - 16” & 42”
5th Wheel Height - 51” w/ 5 Variable Ride height Positions
Gooseneck Swing Clearance - 110” & 84”
Grote Trilliant Work Light


Rear Deck Length - 14’
Rear Deck Loaded Height - 41”
1 - Pair Flat D-Rings On Main Beams At Front
1 - Pair Flat D-Rings On Main Beams At Rear
2 - Pair Flat D-Rings In Boom Trough
2 - Chain Drops Per Full-Width Bolster
2 - Stake Pockets at Rear

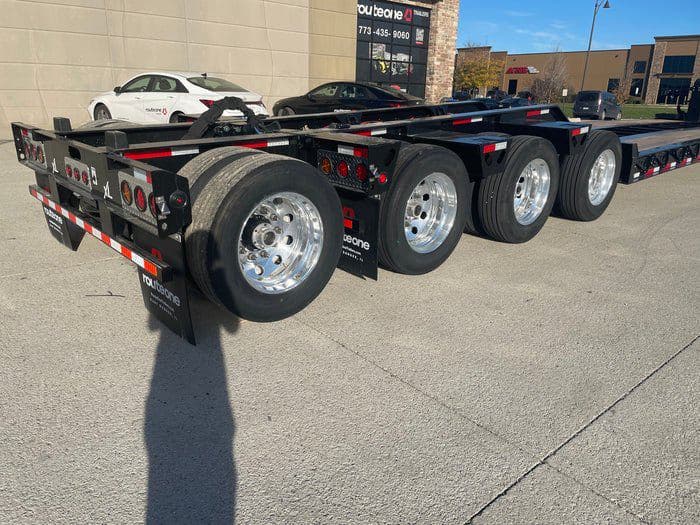

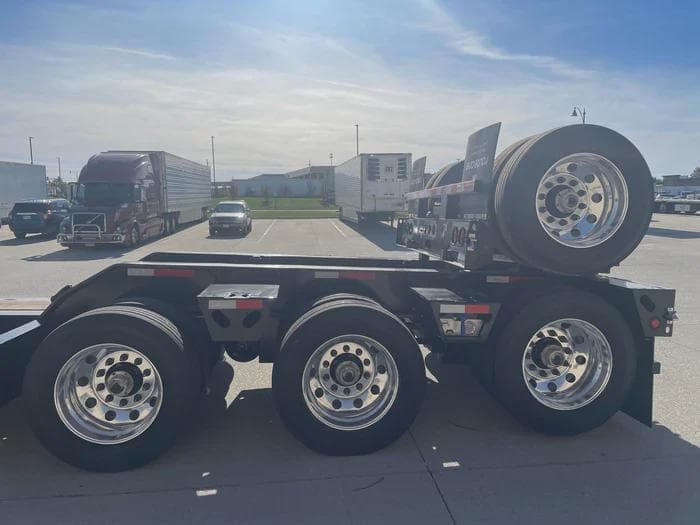

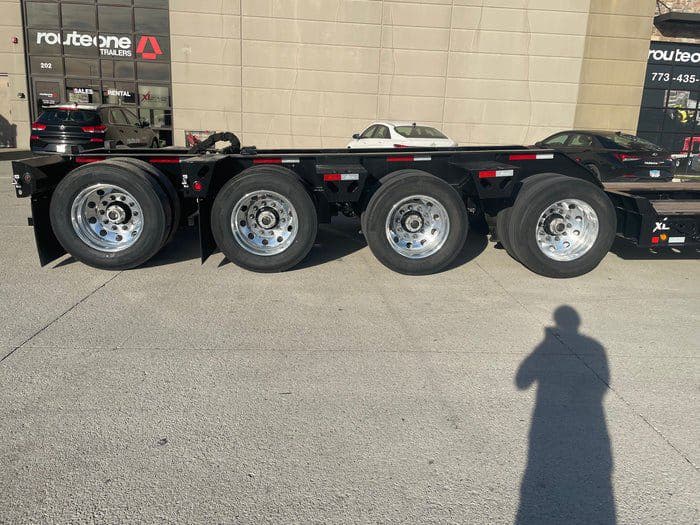

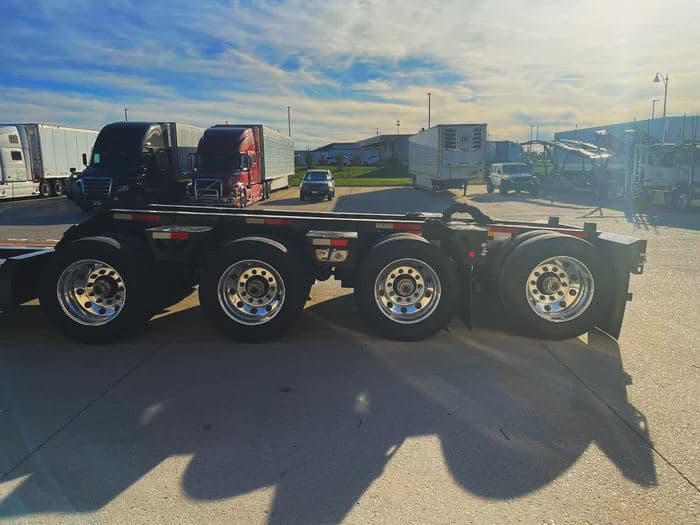

3 - 25,000 LBs Axles

Manual Ride Height Control

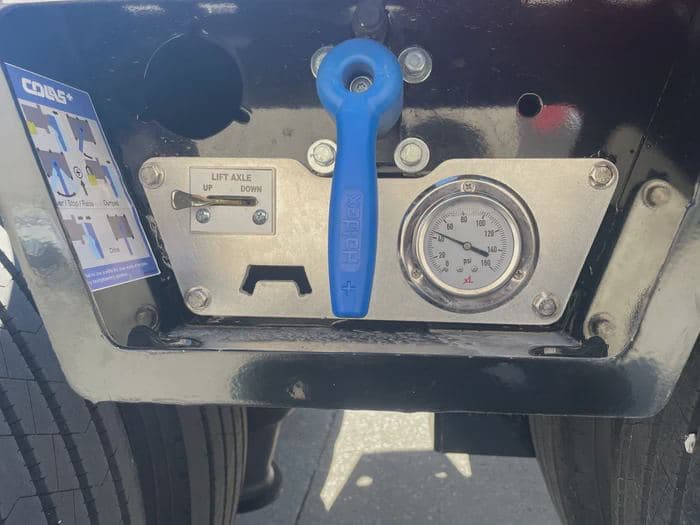

Rear Axle Air Lift
275/70R22.5 Tires
Outer Aluminum Wheels
Hendrickson Air Ride Suspension
Colas+ Raise & Lower Valves
Battery Backup w/ 4-Way Plug
12V Sealed Grote Harness

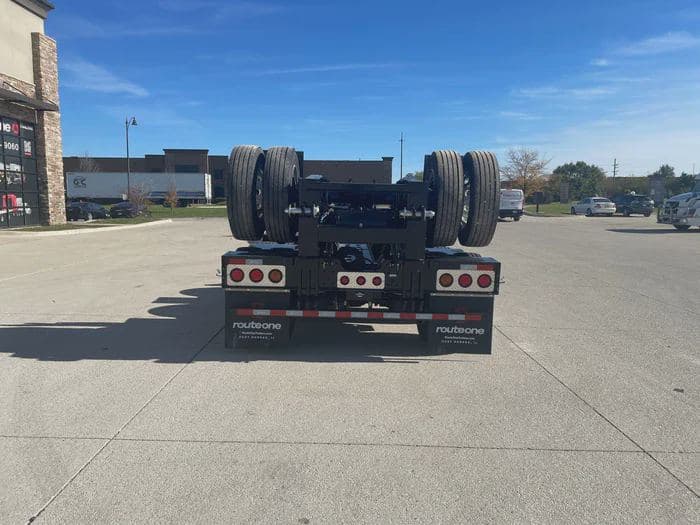

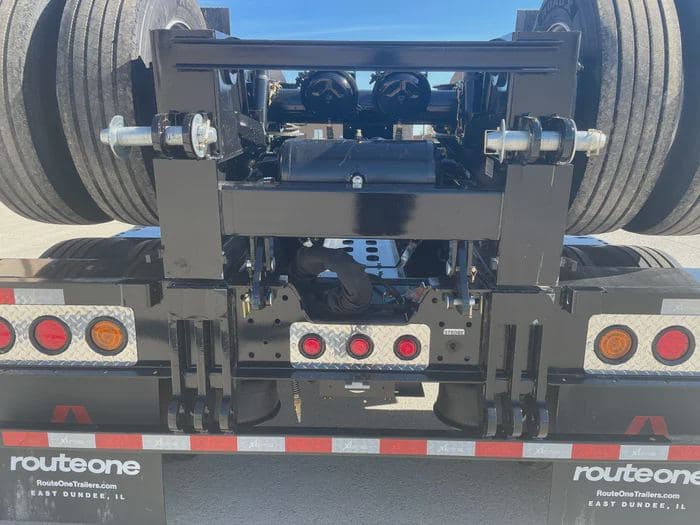

3 Tail Light Package w/ Aluminum Cover
4” Amber Strobe as 3rd Tail Light
Prepped for a Flip Axle and Single Axle Booster
2 - Pair EZ Mount Flag Holders


5 Year Structural Warranty
3 Year Paint Warranty
1 Year Parts & Components Warranty

Flip Axle Sold Separately

Financing Available
Pick up in East Dundee IL or Manchester IA
Lead Time: 4 Months
Call Ross 224-335-7786
