2027 Vanguard VXP

Length 53'

Width 102"

Height 13' 6"

Inside Width 101" Scuff to Scuff (101-1/4" Panel to Panel)

Inside Height 110"

Door Opening 110" Tall, 99" Wide

Sides VXP Composite Plate

Color White

Type Posts Series "A" logistics posts

Post Spacing 48"

Side Scuff HBR Design w Integral Alum Scuff, 14" Total

Side Lining Plate

Nose Lining .180" Ridge OGRE Full Height

Internal Bulkhead 10 ga x 12" Smooth Steel

Rear Doors 1/2" Composite PPW Galvanized Panels

Hinges Five per Door

Roof Aluminum

Roof Bows 1" Deep Galvanized Anti-Snag on 16"/24"

Rear Frame GALVANIZED

Bumper GALVANIZED, Reinforced for Dock-Lock

Rubber Dock Bumpers One Pair Recessed Between Lights

Van Floor 1 3/8" Oak with Three 5/16" Screws per Board

Threshold Plate 27" Galvanized Steel

# of Axles 2

Suspension Type Air Ride

Suspension Brand Hendrickson HKANT40K, SureLok & QuikDraw

Suspension Setting 49" Sliding Tandem, 216" Slide Rails

Tire Size 295/75R22.5

Wheels Steel, Powder Coated White

King Pin Setting 36"

Cross Member Center 10" - Bolted vs. Riveted to Base Rail

Landing Gear Jost, Two-Speed

Comments

22,000 Lb. Floor Rating

Hendrickson TireMaax PRO Tire Inflation

ABS Bendix 2S-1M with SR-5 Spring Brake Release Valve

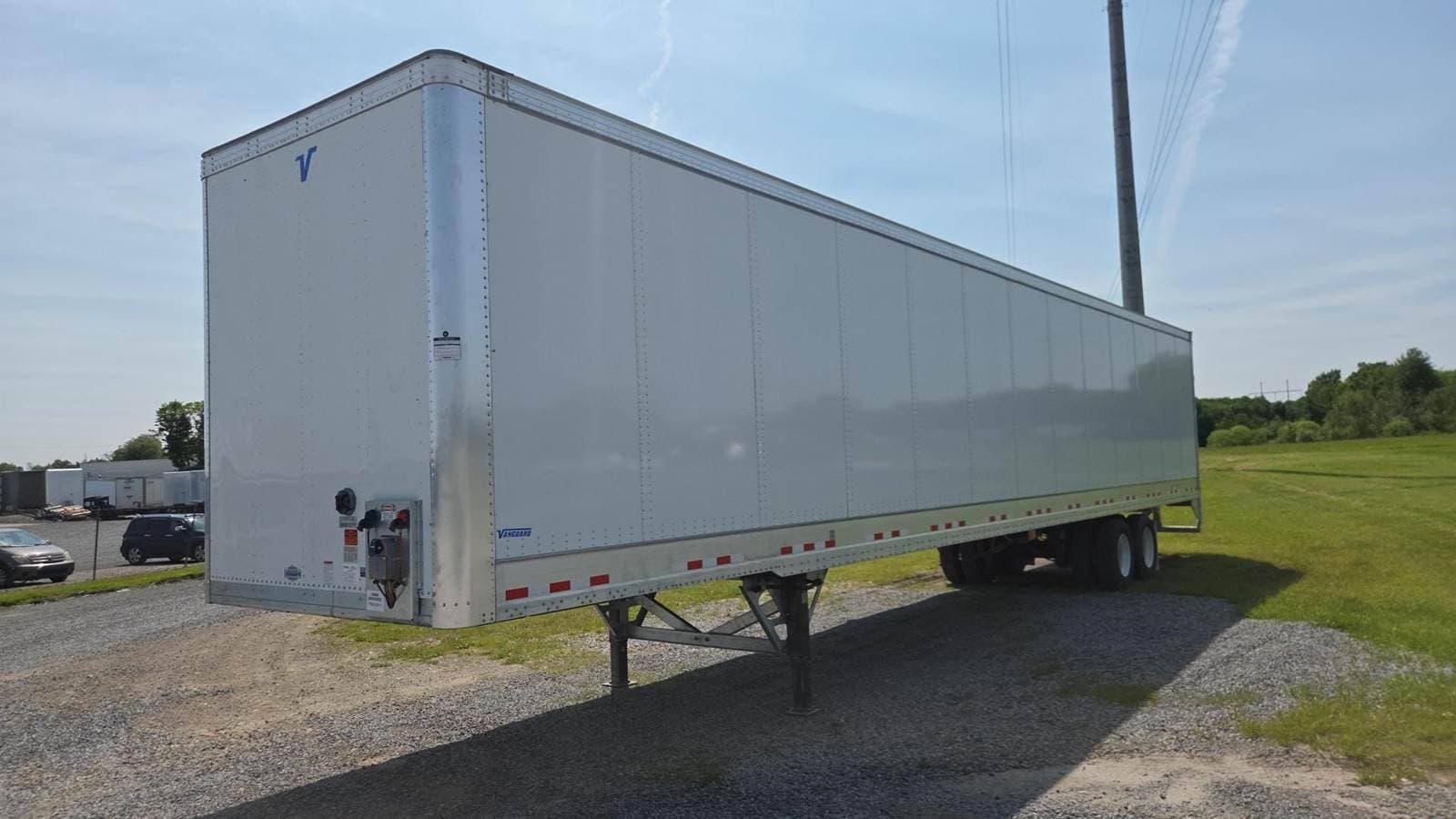

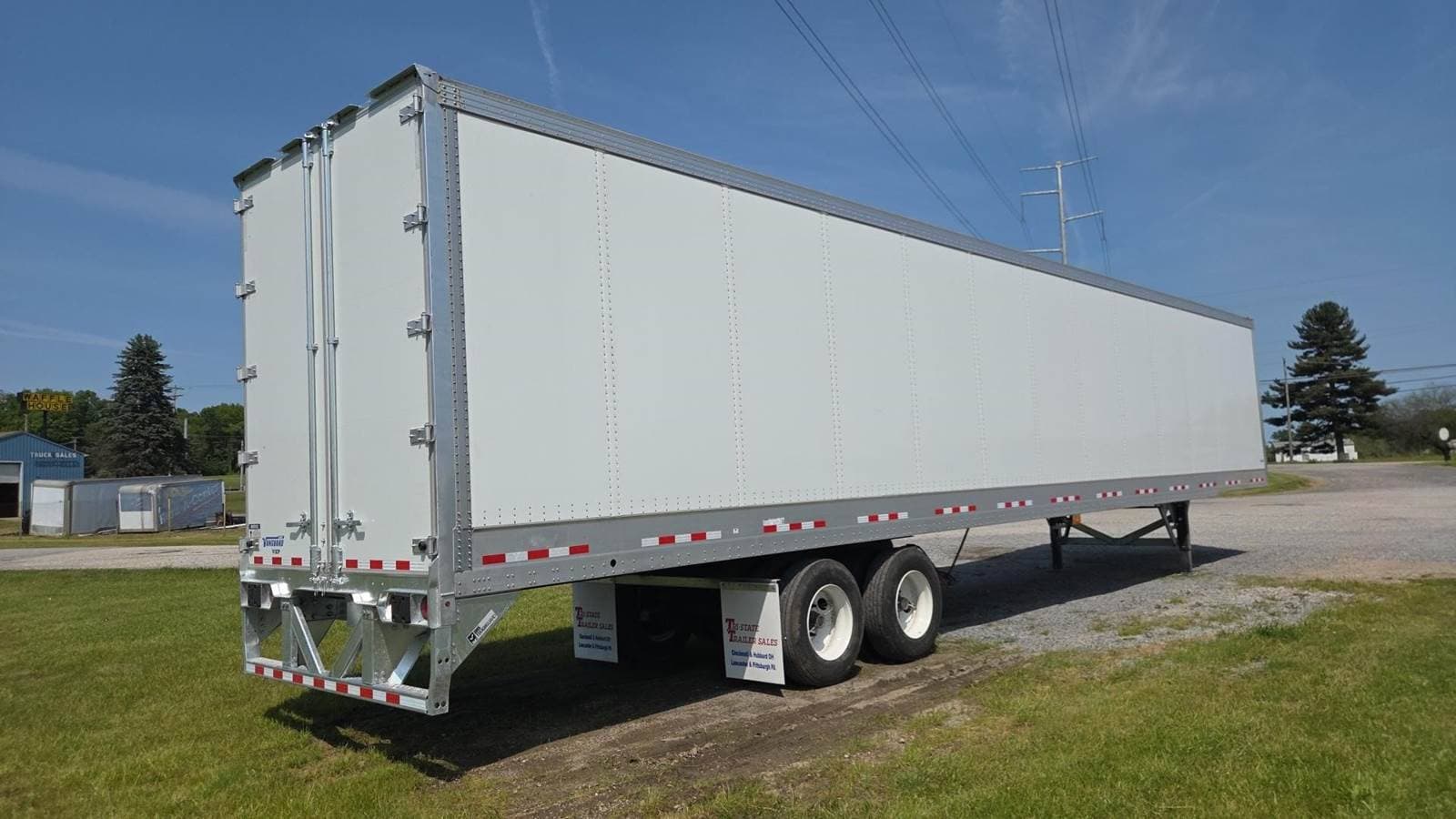

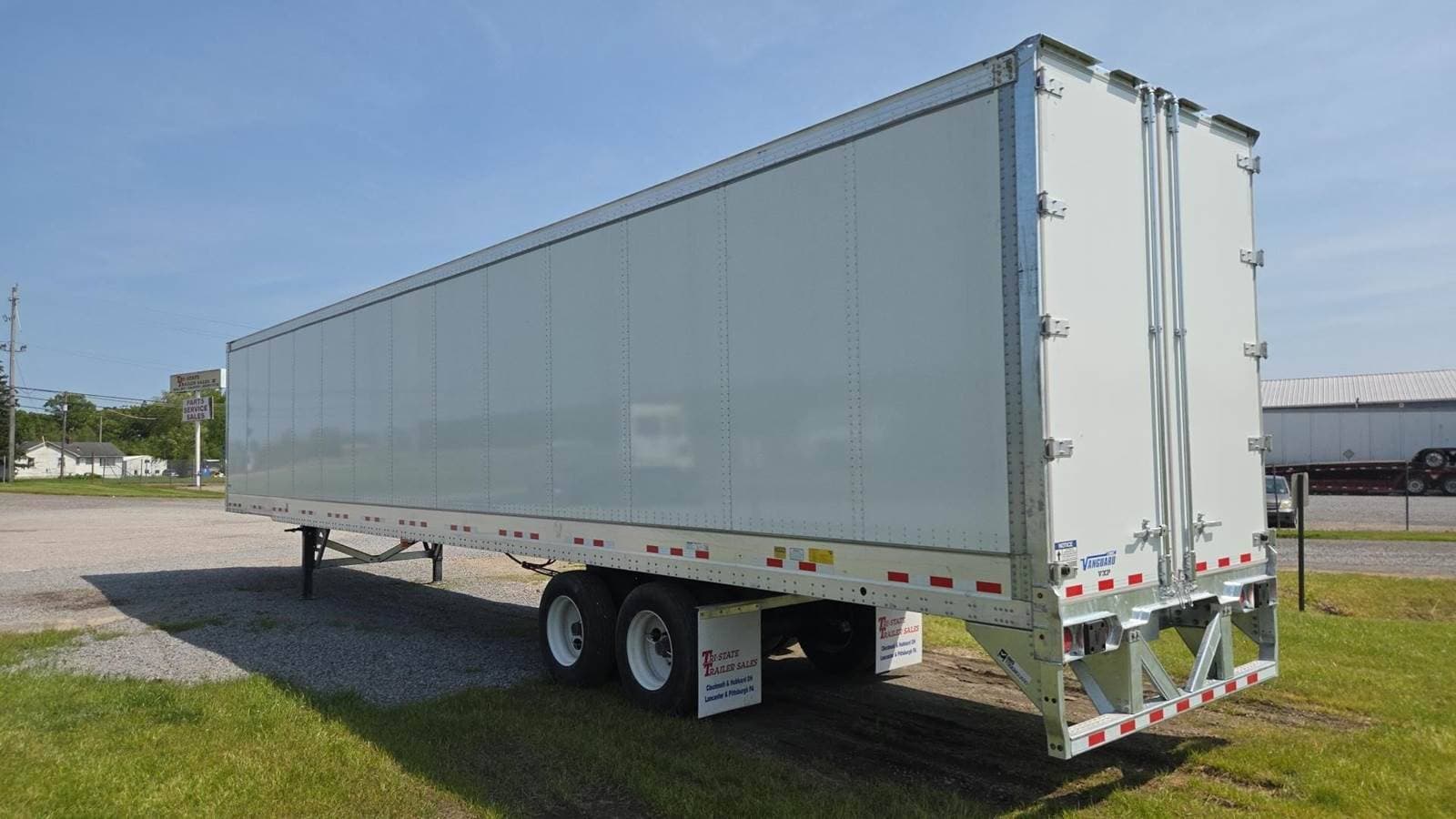

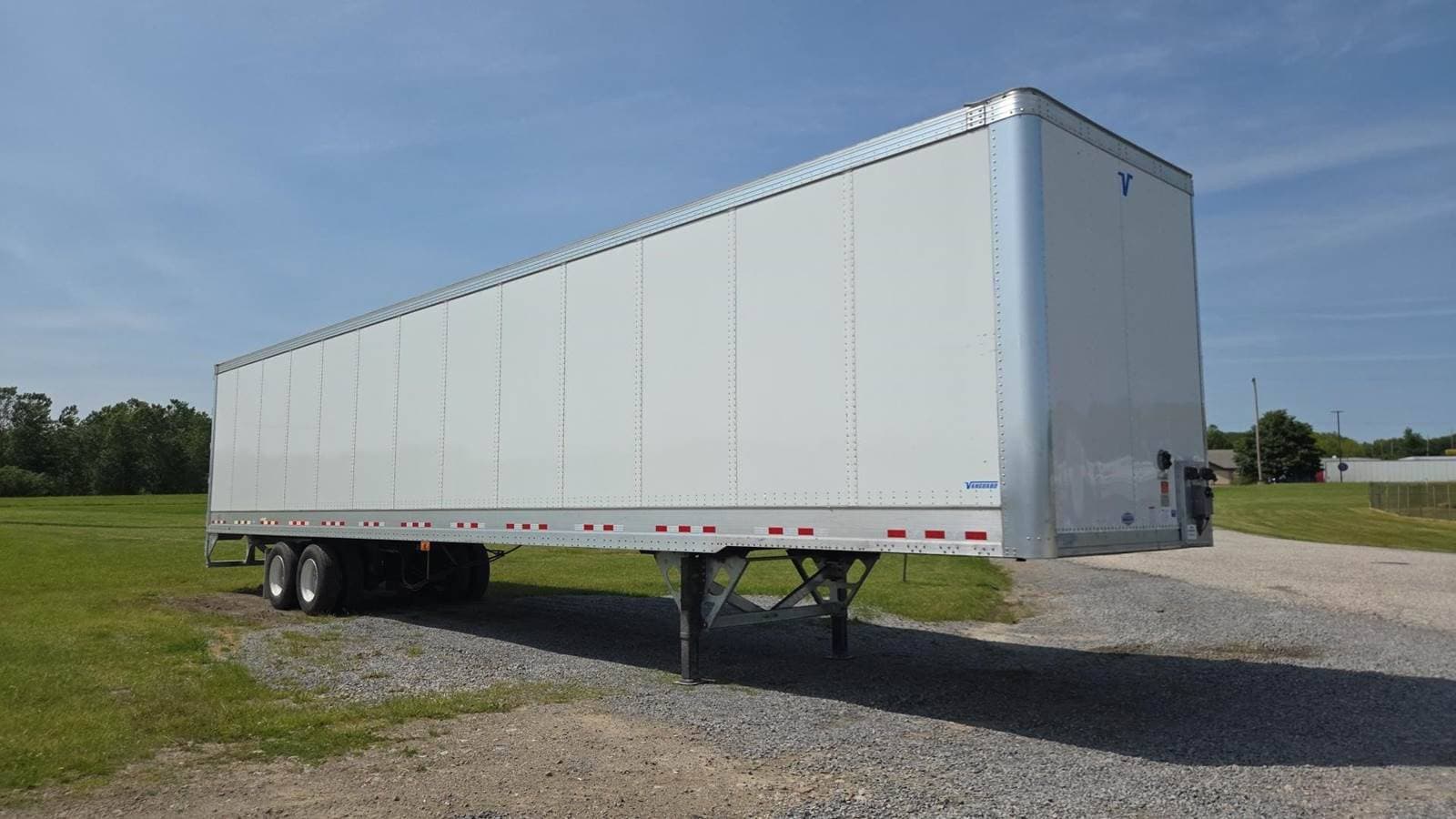

Pictures not of actual trailer. FET Included in Price. FOB Monon, IN
