2027 PITTS LB35-33CS TPILB3533CSLAK Web

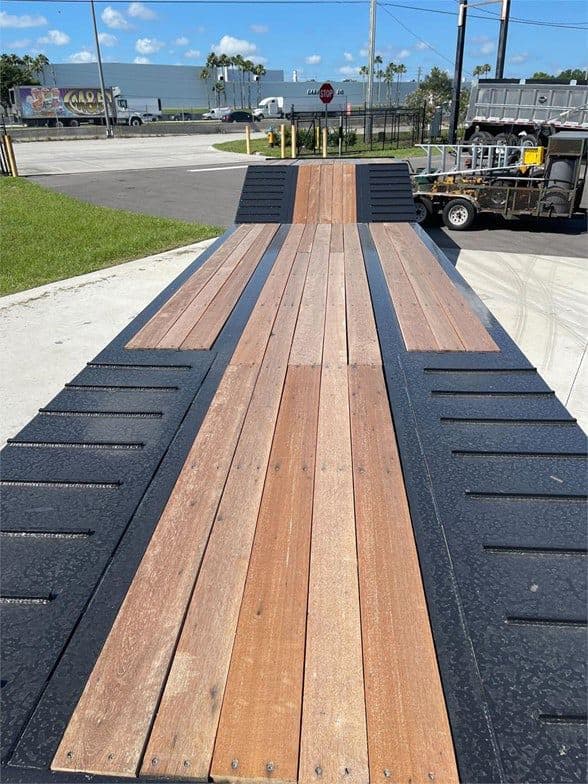

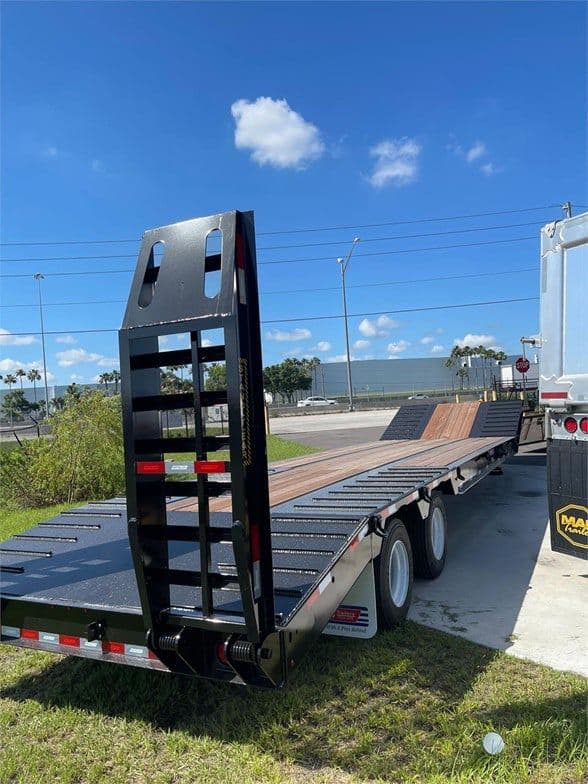

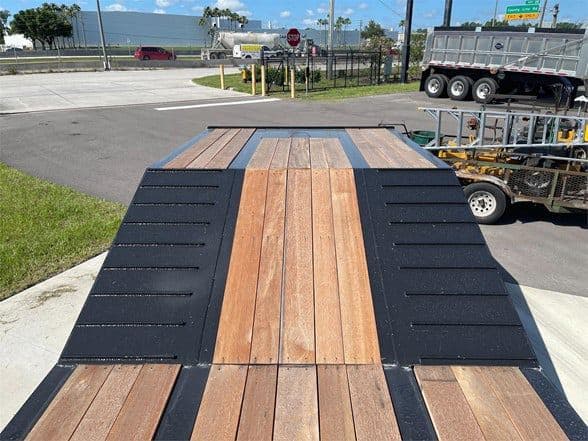

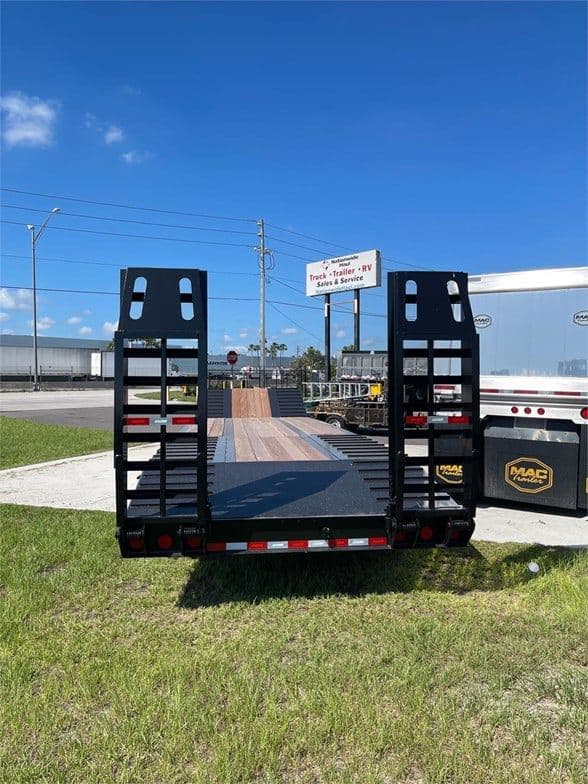

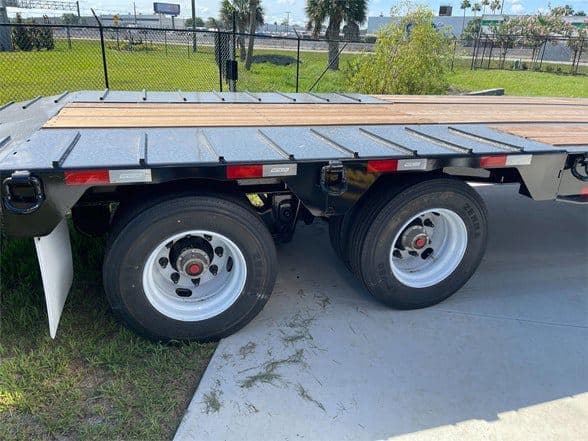

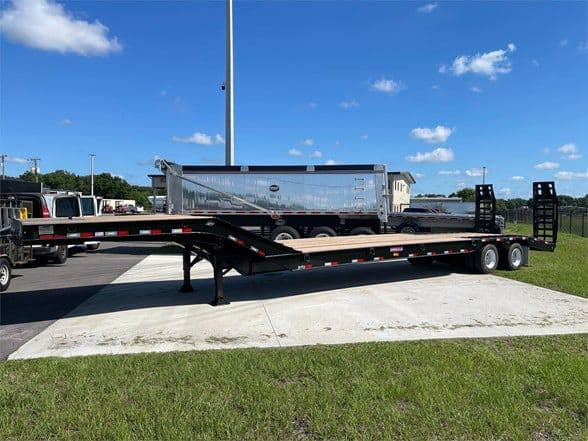

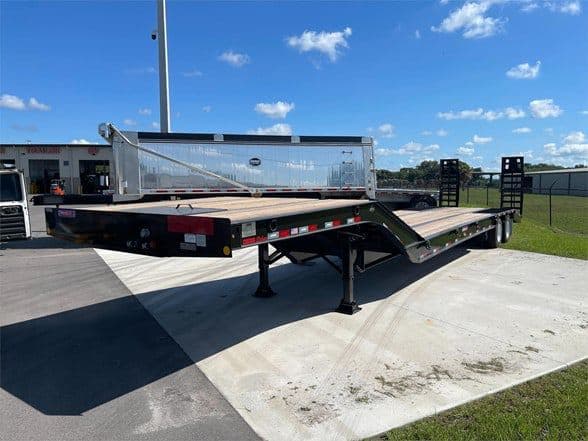

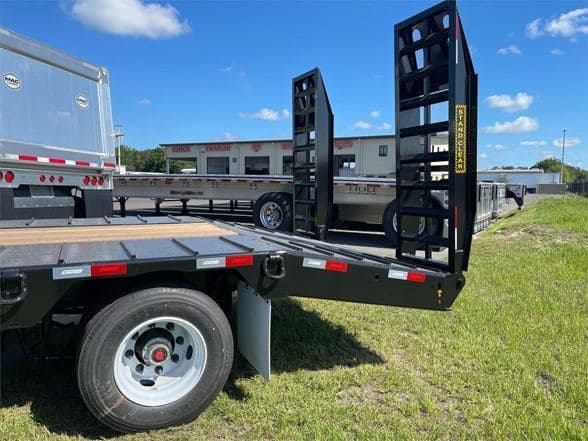

Pitts LB35-33 • Fixed Neck Lowboy **Hydraulic Ramps Option Available** **FET not Included** Delivery charges may apply Locations In FL & GA SPECS: CAPACITY • 35 tons in 16a length (GAWR and tire ratings determine legal payloads) ESTIMATED TARE WEIGHT (STANDARD PACKAGE) • 13,500 lbs. A+- 3% LOAD BASE • 16a rigid point load centered in deck DIMENSIONS • Overall: 8a 6a width x 45a length • Clear deck length: 26(flat deck design) • Deck height under full load: 33a GOOSENECK DESIGN • 48a nominal loaded 5th wheel height • Fixed neck to deck connection • Full width wood filled top deck • Full width 21Adeg steel check plate with loading slope and traction bars • 84a swing radius • Toolbox in front of neck DECK DESIGN • Main longitudinal members 16a fabricated with positive camber • (4) I-beam design • Level deck design • 8a I-beam cross members • 1 1/2a nominal apitong decking BOGIE DESIGN • Wheel wells covered with formed steel check plate and traction bars • 4a dovetail covered with steel check plate and traction bars • 6a x 2a heavy duty spring assisted, self-cleaning, rear loading ramps AXLES • (2) Heavy-duty axles with 49a spread • 25,000 lbs. nominal capacity per axle (GAWR determined by suspension type, brakes, tires and other components) • Tapered spindle axles BRAKES • Heavy-duty brake drums, outboard mount • Automatic slack adjusters • 12 1/4a x 7 1/2a with Type 24/24 parking brakes on (2) axles HUBS • Hub-piloted • Outboard cast drums WHEELS/TIRES • (8) Steel disc wheels 6.75 x 17.5 with 235/75R 17.5 H-ply (Aluminum available) SUSPENSION • Hutch 9700 3-point heavy duty 4 leaf steel spring suspension ELECTRICAL SYSTEM • Fully sealed wiring harness with LED lights • Marker lights and mid-turn signals • (3) Round stop, tail and turn lights per...
